Project Description

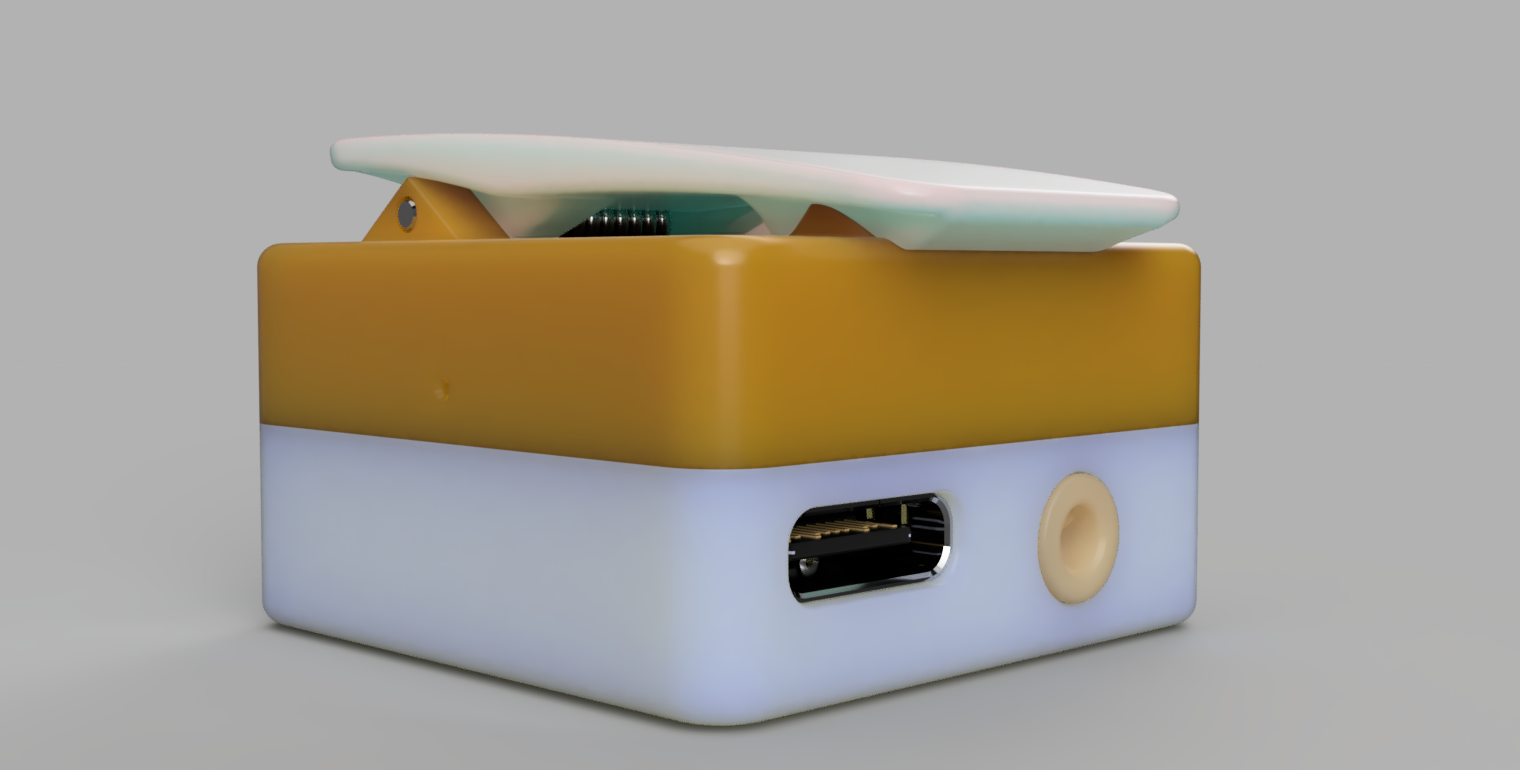

PrThis project was to design a PCB enclosure with a working snap joint to hold everything together. Some salient features of this project are given below
- Reduced size and thickness to minimize
- Button Mechanism
- Designing a simple yet effective snap joint mechanism
- Suggesting changes to PCB to further reduce the thickness.
- Ensuring the enclosure is 3d printable with no breakage.
This was v2 of PCB with reduced thickness than v1.
Key Components
- Designing separate battery section
- New snap joint mechnism
- Cutouts for LEDs
- Minimum Footprint
- Screw Holes
